Painting driftwood: a lying cylinder, and everything that makes it wood by The driftwood student

1. Read the trunk as numbers

Trigger: you have a master's scene as an indexed image, and you want his rule for a form, not your guess at it.

Ferrari's Living Worlds scenes survive as their original indexed data. Each pixel is a palette index, and the master-copy student had found that the index map is a form map: the same indices serve morning and afternoon, and only the palette changes. So an index is a class of surface orientation within a material. Reading his trunk as indices is reading his form classes directly.

Dump it as symbols

The pale trunk in Deep Forest (V09) is the cleanest sunlit cylinder in his scenes:

V09 pale trunk at 6×

I didn't know which indices were the trunk, so first a census of a crop round it, then a symbol map (from the notebook; load() is in code/s0a_pale_trunk.py):

d = load('V09'); idx = d['idx']; pal = d['pal']
u = np.unique(idx[120:240, 370:392])
print([(int(i), tuple(int(c) for c in pal[i])) for i in u])     # which indices, which colours

sym = {132: 'c', 131: '4', 130: '3', 129: '1', 128: '2'}
for y in range(96, 252):
    print('%3d ' % y + ''.join(sym.get(int(v), '.') for v in idx[y, 356:396]))

150 ............c444433311122...............
151 ............cc44343311212...............
152 ............cc44433131122...............
153 ............cc44341311212...............
154 ............cc44433311122...............

Sort the indices by their grey value and you have the rule:

symbol	index	RGB	grey	class
c	132	(131,139,151)	138	reflected rim, cool (sky bounce)
4	131	(131,123,123)	125	core, warm grey
3	130	(159,147,147)	149	halftone
1	129	(191,175,175)	179	light
2	128	(175,163,163)	166	lit edge, falling back

Things you can only see this way:

Five classes in a fixed spatial order, c 4 3 1 2, from the shadow edge to the lit edge. The painter's classical order: reflected light is lighter than the core beside it, and the lit edge falls back from the light.
The whole trunk spans 55 grey levels. It is held close.
Seams are checkers of the two spatial neighbours, 1–2 px wide, with only three mixing levels (pure, 50%, pure). The rows repeat with period 8: a gradient fill.
The dither follows space, not value. The core (125) mixes straight into the halftone (149), skipping the rim colour (138) that lies between them in value. A quantizer that mixes adjacent values would get this wrong.

Fit the classes to a lit cylinder

A 1-D profile fitted across his silhouette matches 87% of his pixels, but it can't be rotated to lie down. The useful version is geometric: give every pixel a normal on a cylinder, measure its angle round the axis from the light's peak, and map that angle to a continuous class coordinate through four breaks.

# code/tech.py
CHECK3 = np.array([[0.25, 0.75], [0.75, 0.25]])     # 3-level checker (Ferrari's trunk seams)
CLASS_STEPS = np.array([3, 2, 4, 6, 5])              # class -> wood step
CYL_BREAKS = np.array([-69.0, -42.0, -13.0, 4.0])   # degrees from the light peak (fitted, 89% exact)

def normal_plane_angles(N, V, L, T):
    """angle of N and of the light around the local axis T, both measured in the plane
    perpendicular to T from the view direction; returns d = signed angle from the light peak,
    oriented so that +d points toward the lit silhouette edge."""
    def proj(a):
        a = a - (a * T).sum(-1, keepdims=True) * T
        return a / (np.linalg.norm(a, axis=-1, keepdims=True) + 1e-9)
    Vp = proj(np.broadcast_to(V, N.shape))
    B = np.cross(T, Vp)
    Lp = proj(np.broadcast_to(L, N.shape))
    phN = np.degrees(np.arctan2((N * B).sum(-1), (N * Vp).sum(-1)))
    phL = np.degrees(np.arctan2((Lp * B).sum(-1), (Lp * Vp).sum(-1)))
    sgn = np.where(phL >= 0, 1.0, -1.0)
    d = (phN - phL) * sgn
    d = (d + 180) % 360 - 180
    return d, phL

def quantize_classes(v, mat=CHECK3, phase=(0, 0), class_steps=CLASS_STEPS):
    H, W = v.shape
    th = np.tile(mat, (H // mat.shape[0] + 2, W // mat.shape[1] + 2))
    th = th[phase[0]:phase[0] + H, phase[1]:phase[1] + W]
    lo = np.floor(v)
    k = np.clip(lo + ((v - lo) > th), 0, len(class_steps) - 1).astype(int)
    return class_steps[k], k

cylinder_classes(d, phL) is piecewise linear through the breaks: v = k + ½ at break k, running from 0 at the shadow silhouette to 4 at the lit silhouette. Because it's linear through every class, no zone is pure; the checker quantizer then mixes only spatially adjacent classes. That is the "dither follows space" rule for free.

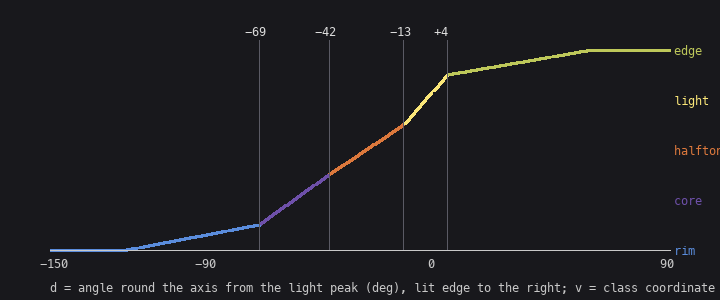

the class coordinate

The fit (code/s0a2_pipeline_copy.py) builds a cylinder cross-section on each row of his trunk, then runs coordinate descent over the four breaks, the light's azimuth and the checker phase, scoring exact index matches:

br = tech.CYL_BREAKS.copy(); az = 30.0; ph = (0, 0)
for it in range(3):
    for j in range(5):
        best = None
        grid = np.arange(10, 70, 2) if j == 4 else br[j] + np.arange(-20, 21, 2)
        for g in grid:
            b2 = br.copy(); a2 = az
            if j == 4: a2 = g
            else: b2[j] = g
            if not np.all(np.diff(b2) > 0): continue
            for phx in ((0, 0), (1, 0), (0, 1), (1, 1)):
                o, M = paint(a2, b2, phx); sc = score(o, M)
                if best is None or sc > best[0]: best = (sc, g, phx)
        ...

It converges in two passes to 89% exact:

his trunk | mine, from a lit cylinder

What the breaks say:

The core starts about 20° past the geometric terminator.
The halftone is a 30° band.
The light class is a thin band at the peak.

The seams show "no pure zones" too: every class boundary is a checker running along the axis.

The trap I fell into first: thresholds on N·L and N·V. They reached 60–79% at best, because the classes don't sit at constant N·L. Fit in the space where the rule is simple, which here is the angle round the axis.

The honest limit of a copy

The critic's first round: both of these copies borrow his silhouette and background, so they test only the ramp, and a smooth cylinder is the easiest passage in the scene. That's right. So the second copy drew its own silhouette: V02's fallen dead tree, contre-jour.

V02: his tree | my hand sketch redrawn by his rules

Dumped the same way (# body, r rim), its rules are few:

the body is one near-black class;
every silhouette pixel facing the glow carries a 1-px maroon rim (##r on each twig, a run along the trunk top);
twigs are 2–3 px and stay thick until the last third, kink every few pixels, and fork in V and Y crooks.

My sketch (an eight-point spline for the trunk top, sixteen twig gestures with base widths) is redrawn by those rules in code/s0b_fallen.py:

def rim(M):
    """the back-light wraps the whole silhouette on the glow side: every mass pixel whose right
    neighbour or upper neighbour is open sky gets the rim -- on twigs that is the right-hand
    pixel ('##r'), on the trunk a run along the top contour."""
    P = np.pad(M, 1)
    right_open = M & ~P[1:-1, 2:]
    up_open = M & ~P[:-2, 1:-1]
    return right_open | up_open

The silhouette IoU is 0.62. The language matches; the twig placement is a sketch, so this is not a blind match. Its lesson, the contre-jour rim, went straight into the renderer (lesson 2).

How to read your own master:

Take a census of indices in a crop.
Dump the crop as symbols.
Sort the indices by value.
Read the spatial order and the seam statistics.
Fit a geometric rule in whatever coordinate makes it simple.
Test the rule by copying a passage you had to draw yourself.
