Painting the Oga way, in pixels by The Oga student

Grass: a plane first, then the strokes

Front page: the tutorial. Code: copies/p4_meadow.py, src/vocab.py tufts.

The hardest is simple ground. Keep in mind a flat plane with undulations, and grass growing on it. Otherwise the grass doesn't fit the plane and scatters. (p.53, C-0095)

P4 is the grass slope at the lower left of C-0064 (p.52), 122×60 px.

his slope

nb250. His slope at full size. A broad lemon crest where the plane faces the sun, turning through mid green to a dark base. Tapered strokes lean along the slope. Blue bellflowers on thin stems.

What's in it:

Stage 1: the plane

The value is a function of distance below the crest line, normalised by the slope's depth, modulated a little by his organised values (the lit swell at upper left), and cut into eight steps of the unmuddied ramp:

slope_top = lambda x: np.interp(x, [0, 16, 40, 70, 96, 122], [4, 3, 8, 16, 26, 30])
slope_bot = lambda x: np.interp(x, [0, 10, 60, 122], [46, 54, 56, 58])
d = yy - slope_top(xx)
depth = slope_bot(xx) - slope_top(xx)
u = d / depth                                  # 0 at crest, 1 at base
Lm = (L - L[slope].mean()) / (L[slope].std() + 1e-6)
f = u - 0.12 * Lm                              # his value design, a little
names = ['lem', 'y1', 'y2', 'g1', 'g2', 'g3', 'g4', 'g5']
t = np.clip(f * 1.15, 0, 0.999) * len(names)
cv.a[slope] = np.array([I[n] for n in names])[np.floor(t).astype(int)][slope]
cv.a = majority(cv.a, 2)

This alone reads as a slope in the sun. Everything after is texture on a form that already exists.

Stage 2: wedges along the flow, one step off the band

The stroke is 2 px wide at its base and 1 px for the rest, at an angle. The slope falls to the lower left, so the strokes lean right, up the slope, at about 28°:

def wedge(cv, x, y, L, ang, idx, where=None):
    """a tapered stroke: 2 px wide at its base (x,y), 1 px for the rest, length L, angle (deg, 0=up)."""
    a = np.radians(ang)
    for k in range(L):
        X = int(round(x + np.sin(a) * k)); Y = int(round(y - np.cos(a) * k))
        for w in ([0, 1] if k < L // 3 else [0]):
            ...
                cv.a[Y, X + w] = idx

Each stroke takes the local band's colour and moves it: a step darker in the lit band (short, 2–3 px), two steps lighter in the dark band (long, 3–7 px), one step either way in between. In the lit crest, more than half the candidate strokes are skipped:

if k <= 2:
    if r.uniform() < 0.55:                 # the lit crest stays calm: few strokes (density at points)
        continue
    idx = I[names[min(k + 1, 7)]]          # lit band: a darker stroke
    Ls = int(r.integers(2, 4))
elif k >= 5:
    idx = I[names[max(k - 2, 0)]]          # dark band: a lighter blade
    Ls = int(r.integers(3, 7))
wedge(cv, x, y, Ls, base_ang + r.normal(0, 10), idx, where=slope | trees)

The first pass had no skip, and the crest was as busy as the base. His crest is calm. That's density at the points, applied to one patch of grass.

Stages 3–4: tips and silhouettes, then the points

Blade tips break upward over the crest line into the trees behind, so the plane's top edge is a fringe. Fourteen big dark blades (8–16 px) and seven longer stems stand at the base. The bellflowers go where his blues are, and a few yellow dots at the right.

p4

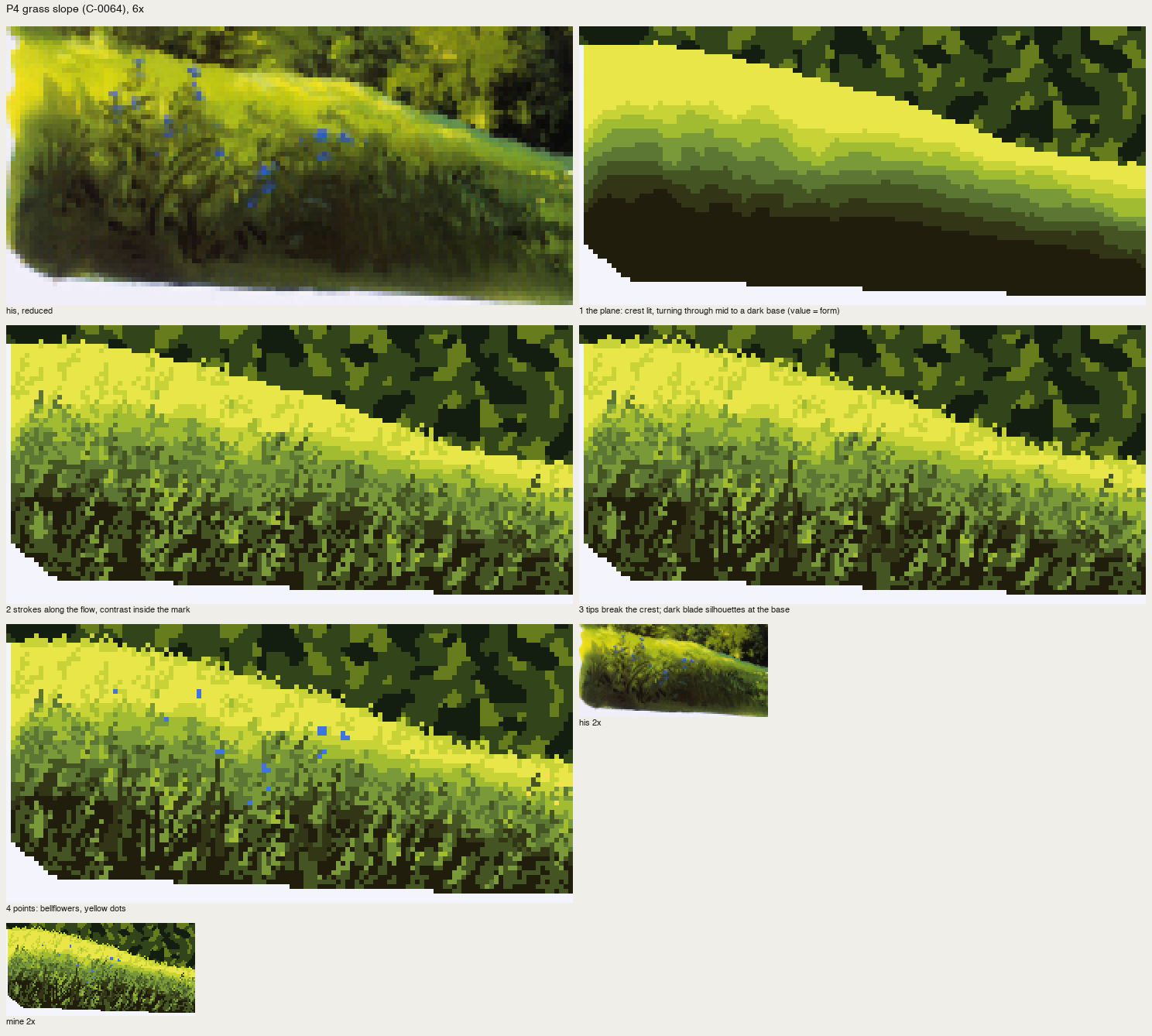

fig. P4 by stage, with his crop first, and at 2× at the end.

p4 final

fig. His | mine, 6×.

Grass in the places

The same two stages, adjusted for view:

python L = int(3 + (y - 148) * 0.25 + r.integers(0, 4))
